Tool Sharpener M-01-AF

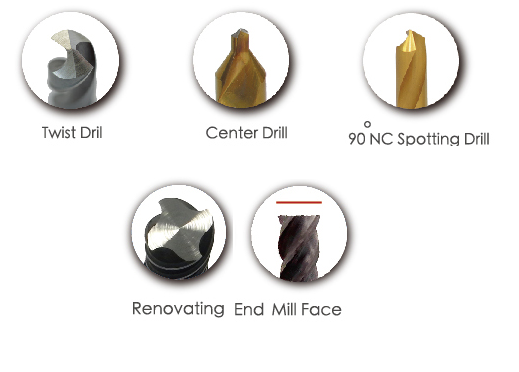

(Renovating End Mill Face)
(Sharpening Drill Bit)
Sharening drill bit
Renovating End Mill Face
specification_01
Model
M-01
Type
AF
Order No
Tool Dia.(mm)
Ø 2mm ~Ø 13mm
Point angle
90∘~ 140∘
Power Supply
1PH,AC110V 50/60Hz or AC 220V
R.P.M of Motor
5500
Motor Power
200W
M/C Weight(kgs)
N.W.12.2 /G.W.13.2
M/C Size(mm)
L:296xW:180xH:170
Applied Field
Drilling Machine
Manual Drilling
NC Milling,NC Lathe
Renovating End Mill Face
Standard Attachment
Diamond Wheel :
M1201 CBN200 Wheel x 1 Pcs
(For General drill bits)
M1201 SDC200 Wheel x 1 Pcs
(For End Mill Renovating)
Edge Positioning X 1 Pcs
Wrench 2.5mm X 1 Pcs
Wrench 4.0mm X 1 Pcs
Chuck set (ER20) X 1 Set
ER20B Collet x 12 Pcs (Ø2.5, Ø3, Ø4,…Ø13 mm Each 1 Pcs)
Chips Collector X 1 Pcs
